Grafana

Monitoring

Open-source dashboards and alerting for any metrics data source.

Grafana is the industry-standard open-source platform for building dashboards and alerts from virtually any data source — Prometheus, Loki, InfluxDB, PostgreSQL and 100+ more via plugins. Paired with Prometheus and Loki it forms the classic self-hosted observability stack for monitoring homelab infrastructure and applications.

License

AGPL-3.0

GitHub stars

77,000

Official website

https://grafana.com/oss/grafana

Source code

https://github.com/grafana/grafana

Compatibility

Architectures

amd64, arm64

Database

SQLite

Resource footprint

512 MB RAM · 0.5 CPU

512 MB RAM / 0.5 core comfortably renders dozens of dashboards for a homelab. Grafana itself only visualizes data — the real resource cost usually comes from the data sources it queries (Prometheus, Loki, InfluxDB) running alongside it.

Proof of Work Gallery

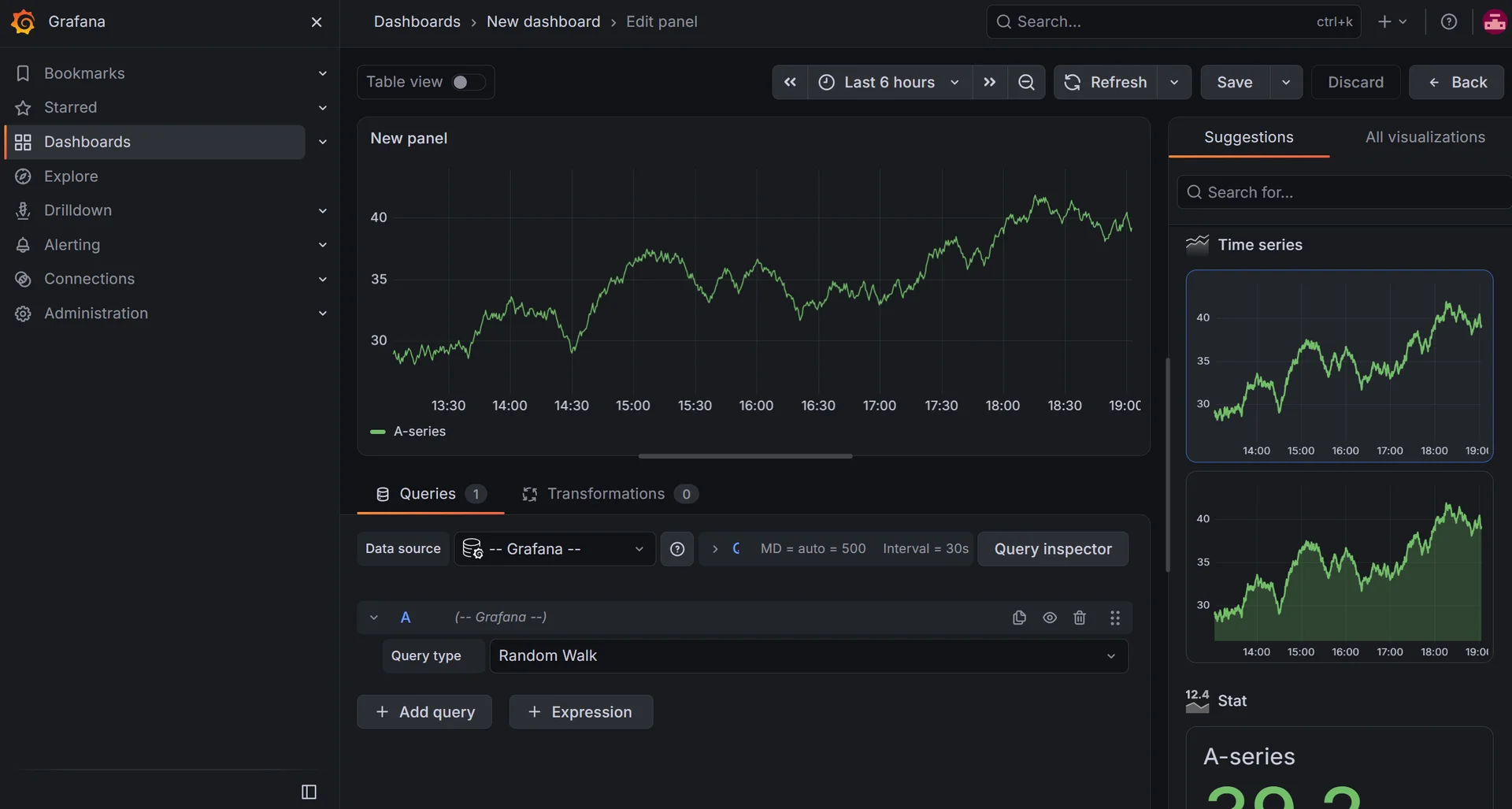

Dashboard

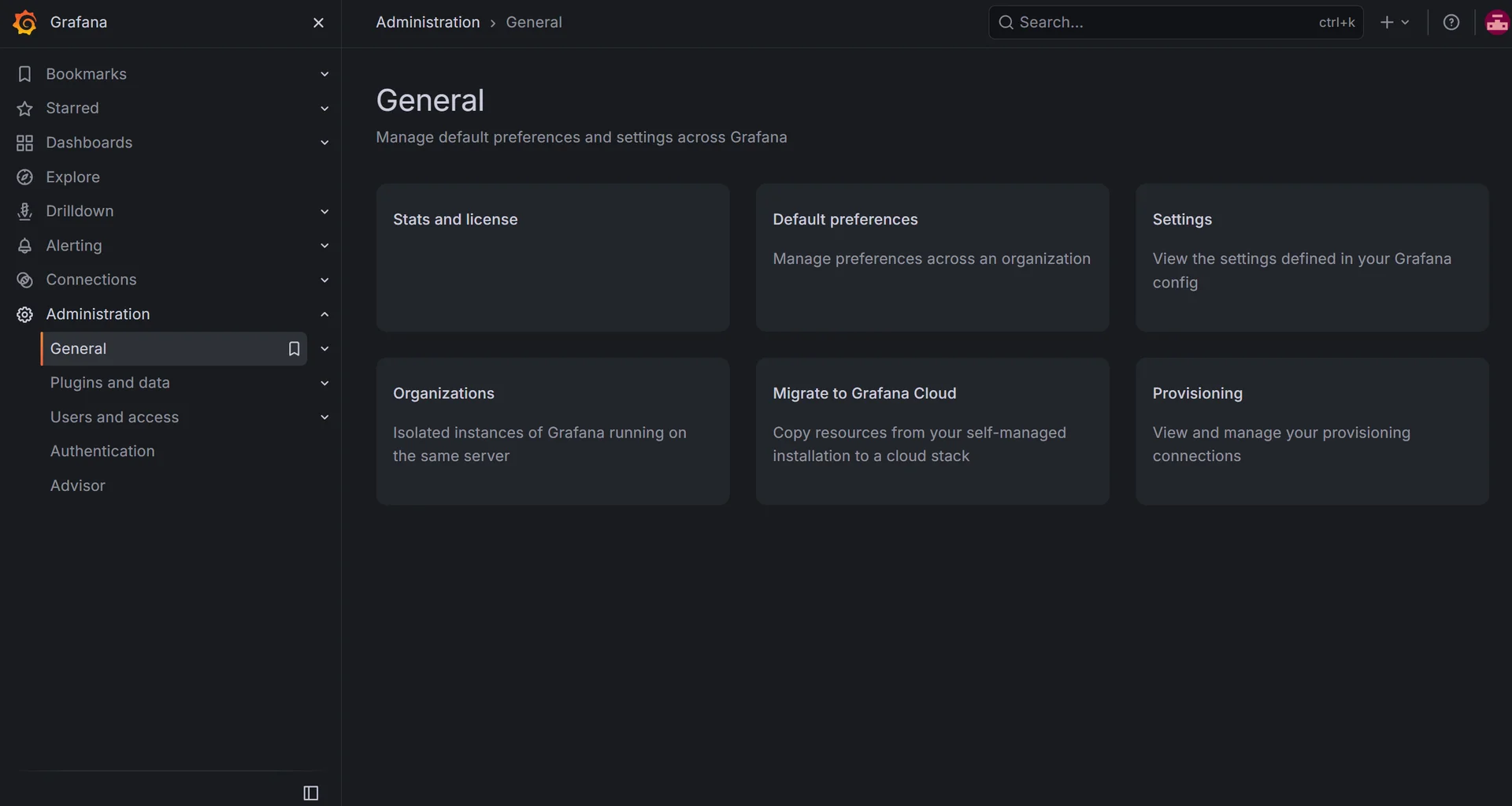

Settings

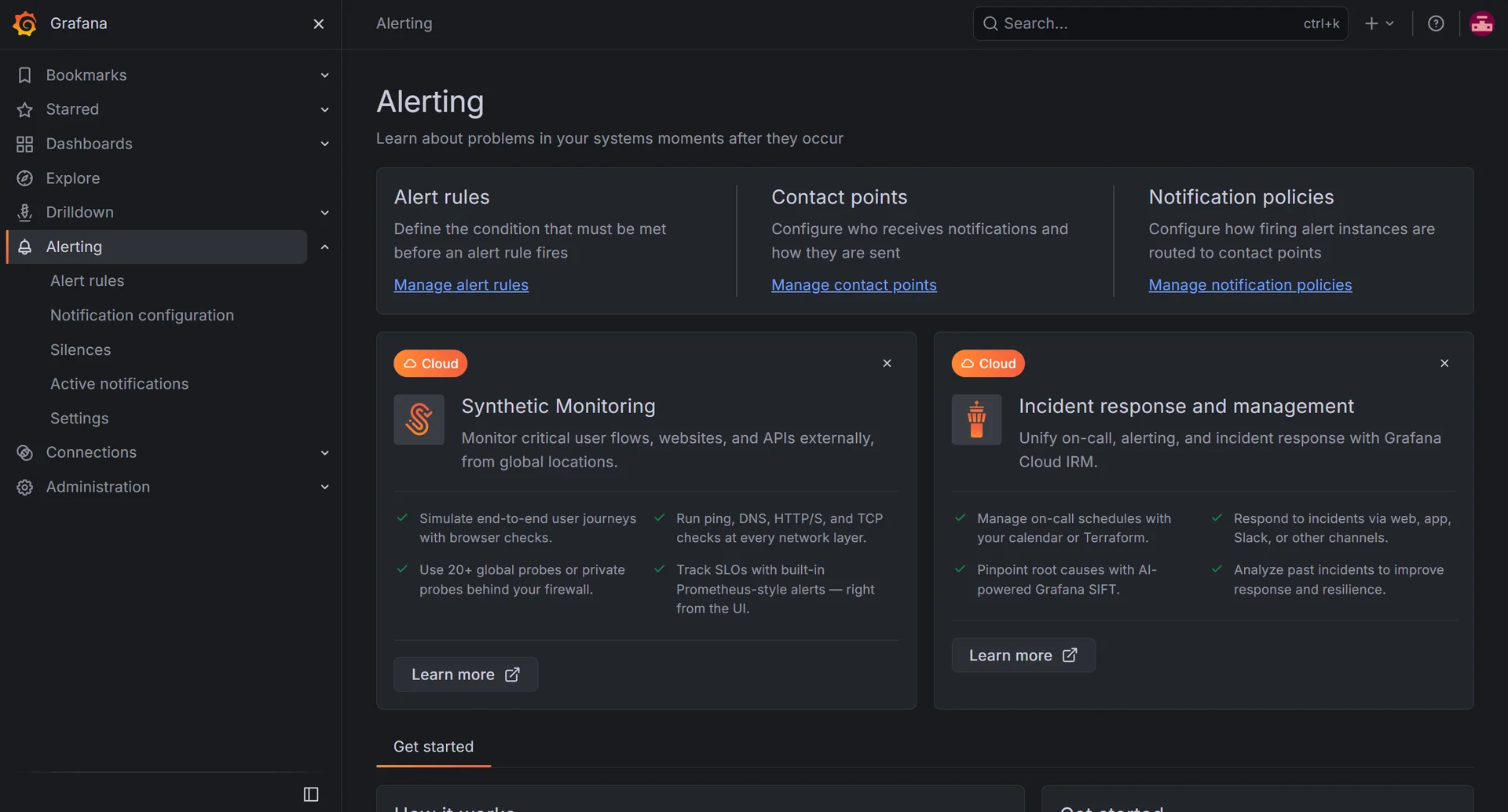

Alerting

Deployment

services:
  grafana:
    image: grafana/grafana-oss:latest
    container_name: grafana
    restart: unless-stopped
    ports:
      - "3000:3000"
    environment:
      - GF_SECURITY_ADMIN_PASSWORD=change-me
    volumes:
      - grafana-data:/var/lib/grafana

volumes:
  grafana-data:

Alternative to

Datadog, New Relic, Splunk
